AI vs. Physicians: A Close Look at Hip Fracture Detection Accuracy

Developments in medical technology increasingly focus on the use of Artificial Intelligence (AI) in the diagnostic process. If all goes according to plan, this trend could completely transform the framework of healthcare delivery, particularly in orthopedics. In today’s research deep dive, we will discuss the study by Beyaz et al. on the effectiveness of an AI algorithm developed to diagnose hip fractures, as seen on plain radiographs. Its performance is then compared to the conventional method used by many healthcare providers.

Background and Objective

Hip fractures are among the most common and serious medical conditions today, especially among the geriatric population. Rapid and accurate diagnosis of these fractures is crucial because, when missed or delayed, can lead to troubling outcomes, including higher morbidity and mortality rates. Traditionally, the diagnosis involved anteroposterior (AP) pelvis and lateral hip radiographs, interpreted by various specialists such as emergency department physicians, general practitioners, orthopedic residents, radiologists, and orthopedists. This research highlights that a very small subgroup of hip fractures (2.7%) may be indistinguishable even with the sensitive and specific imaging of radiographs and thus requires the assistance of computed tomography (CT) and magnetic resonance imaging (MRI).

AI represents a domain where an algorithm designed to classify and diagnose conditions based on images has shown results virtually on par with those of human experts, provided the settings are controlled. This study aims to bridge the gap from theoretical success to practical application by comparing the performance of an AI algorithm with that of human specialists in diagnosing hip fractures on plain radiographs.

Method - Majority Vote Technique

The researchers employed a carefully designed method to ensure a comprehensive evaluation of the AI algorithm's diagnostic capabilities. A large dataset of radiographs was labeled by experts as fractured or non-fractured in the area of the proximal femur, serving as a foundation for comparison. Additionally, other healthcare professionals, including general practitioners, emergency medicine specialists, radiologists, orthopedic residents, and orthopedic surgeons, also analyzed these radiographs and labeled them for presence of fractures. Their assessments were then compared to the AI algorithm's performance.

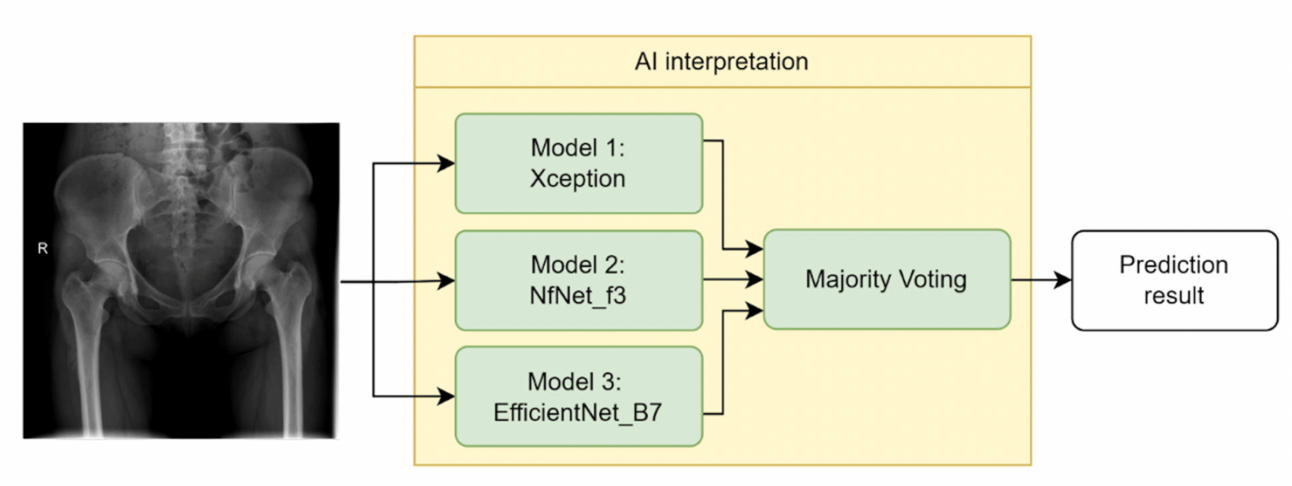

The AI algorithm comprises three models and uses the majority vote technique to derive the final diagnosis, mimicking the clinical decision-making process where a consensus among specialists is reached.

The majority vote technique in AI is like to a democratic election within a group of AI models; in this case, there are three. Each model 'votes' on what it believes the correct diagnosis should be for a given problem, and the solution with the most 'votes' becomes the final decision. This method combines the strengths of multiple models to make more accurate predictions. It is particularly effective because different models may have different weaknesses, but by pooling their decisions, the likelihood of making the right collective choice increases.

AI Models Explored

AI models such as Xception, EfficientNet-B7, and NFNet-F3, used in this research, represent some of the most successful image classification methods in literature. All these models were trained and tested on a large dataset of radiographs. Their performance was evaluated using the F1 score, a metric ensuring balance between sensitivity and specificity. The use of a majority voting system for the AI algorithm's final decision represents a consensual approach to diagnosis, similar to a clinical consultation.

What is impressive is the large dataset acquired from multiple centers over many years reinforces the generalizability and relevance of the findings. It’s important to note that ethical considerations and anonymization procedures applied to the data speak to the integrity and reliability of the research.

Key Research Findings

Performance Comparison

The core of this study lies in the comparative analysis of the AI algorithm's diagnostic performance against that of human specialists. Here are the results:

• F-1 Scores: The majority voting technique achieved the highest F-1 score of 0.942, followed closely by orthopedic surgeons at 0.938, and AI models at 0.917. Orthopedic residents, emergency medicine specialists, general practitioners, and radiologists trailed with scores of 0.858, 0.758, 0.689, and 0.677, respectively.

• Sensitivity Scores: In terms of sensitivity, majority voting led with 0.970, indicating a high true positive rate. Orthopedic surgeons and AI models followed with scores of 0.946 and 0.916, respectively.

• Specificity Scores: Orthopedic residents showed the highest specificity at 0.943, closely matched by radiologists at 0.942, while majority voting was at 0.915. Specificity indicates their ability to correctly identify non-fractured cases.

Breaking Down the Findings

The AI algorithm's effectiveness in diagnosing hip fractures on plain radiographs is impressive - surpassing both individual AI models and human experts in most metrics. The majority voting technique demonstrates the power of AI collaboration in medical decision-making. Notably, the AI algorithm's high sensitivity score emphasizes its precision in fracture detection, which can be crucial in high-pressure situations like an emergency room.

The lower performance of emergency medicine specialists and radiologists points to the diagnostic challenges faced by non-orthopedists but also highlights the need for a supportive role of AI algorithms that can be extremely helpful in standardizing diagnosis.

Impact and Future Implications

Supporting Clinical Decision-Making

The AI algorithm's exceptional performance, especially in terms of sensitivity and F-1 scores, indicates its potential to enhance diagnostic accuracy of hip fractures. Due to its high accuracy and reliability, the AI algorithm can be an invaluable decision-support tool for clinicians, especially in the high-pressure environment of emergency departments. Employing the algorithm by non-orthopedist physicians can significantly reduce the rate of missed or delayed diagnoses, thereby lowering morbidity and mortality associated with such errors. This support is key to ensuring prompt and accurate diagnoses, ultimately improving patient care.

Future Prospects

It is an exciting step towards the possibility of AI integration into orthopedic diagnostics procedures, though the authors of this study does emphasize the need for more research. Future research should be aimed at developing an integrated approach with AI algorithms and other diagnostic tools while further developing and refining algorithms for other types of fractures.

Other limitations that need to be considered are the exclusion of lateral hip radiographs that require a diverse dataset for training. As technology in AI progresses, this role is predicted to only increase in the near future and, like other roles of AI in healthcare, open new doors for even better and personalized patient care.

Conclusion

In summary, this report showcases the AI algorithm's strong performance in diagnosing hip fractures from plain radiographs, outperforming key diagnostic metrics compared to human specialists. This suggests its potential to improve clinical decision-making and patient outcomes. Yet, this is just an initial step towards fully harnessing AI's capabilities in healthcare. As exploration and refinement of these technologies continue, their potential applications in orthopedics are vast and promising.

For original research publication, see the Full Article
